48V 15Ah Hailong-Style E-Bike Battery – 720Wh, 25A BMS

Replace or upgrade a compatible 48V e-bike battery with this 720Wh Hailong-style removable lithium-ion battery. The slide-in mounting base, key lock and XT60 adapter cable make it suitable for many conversion kits and compatible e-bikes when voltage, current, connector and frame clearance all match.

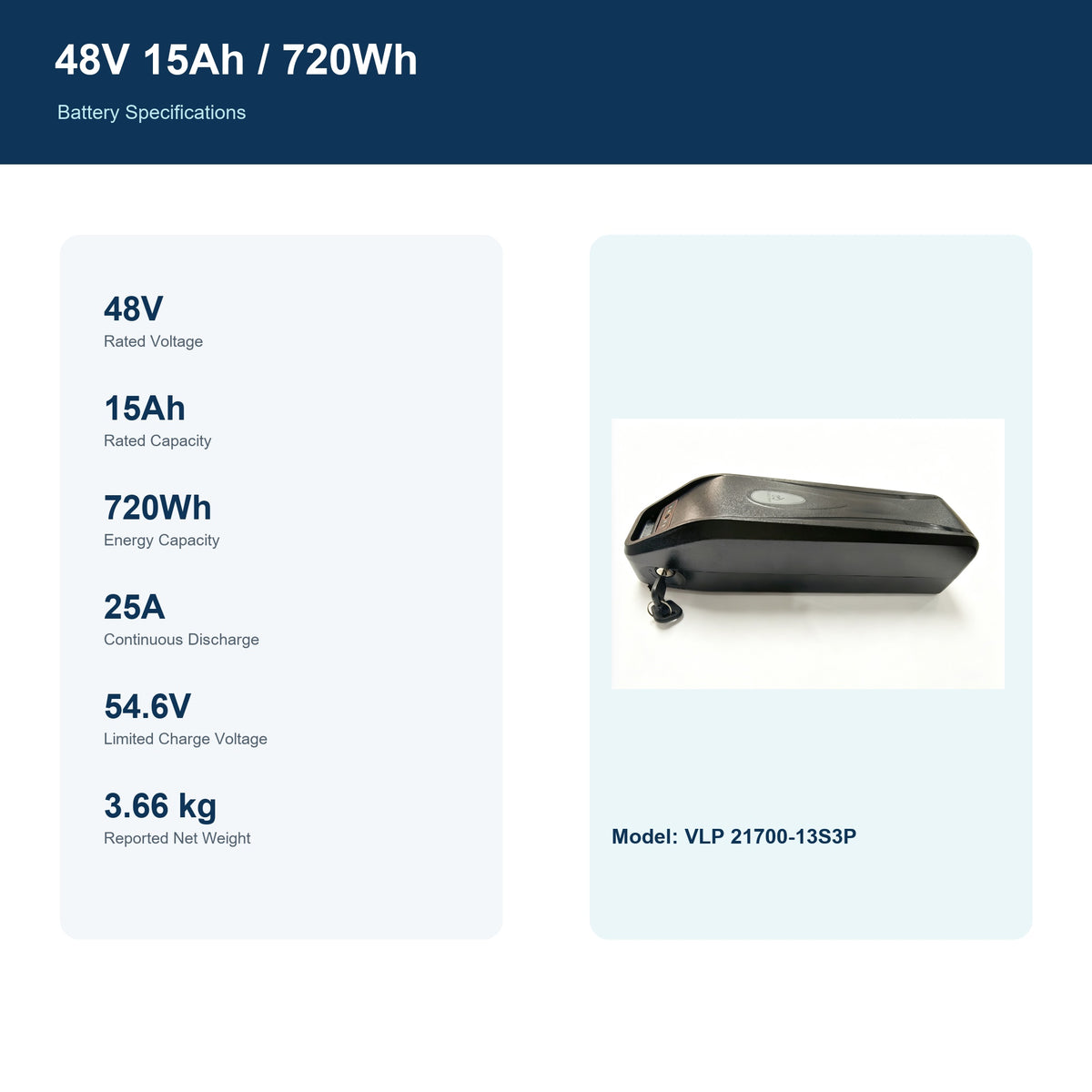

Key specifications

• Nominal voltage: 48V
• Rated capacity: 15Ah
• Rated energy: 720Wh
• Battery model: VLP 21700-13S3P
• Cell format: 21700, 5000mAh cells
• BMS continuous discharge current: 25A
• Recommended motor power: up to 1000W, subject to controller current and system compatibility
• Discharge cut-off voltage: 36.5V
• Charge limit voltage: 54.6V
• Matching charger output: 54.6V 3A

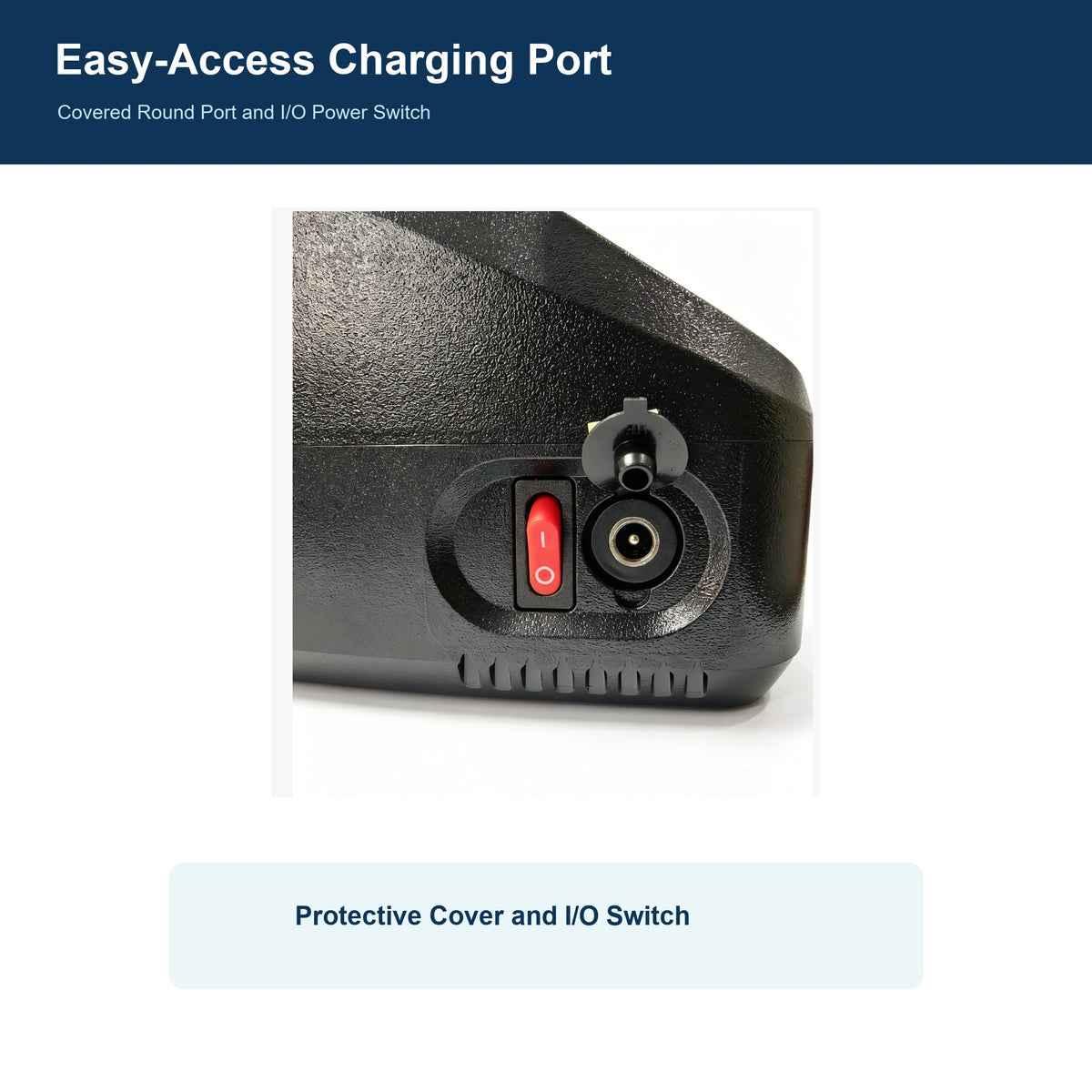

• Charging port: DC5521
• Battery-to-base connection: 5-pin blade connector
• Controller connection: XT60 adapter cable with bare wire leads

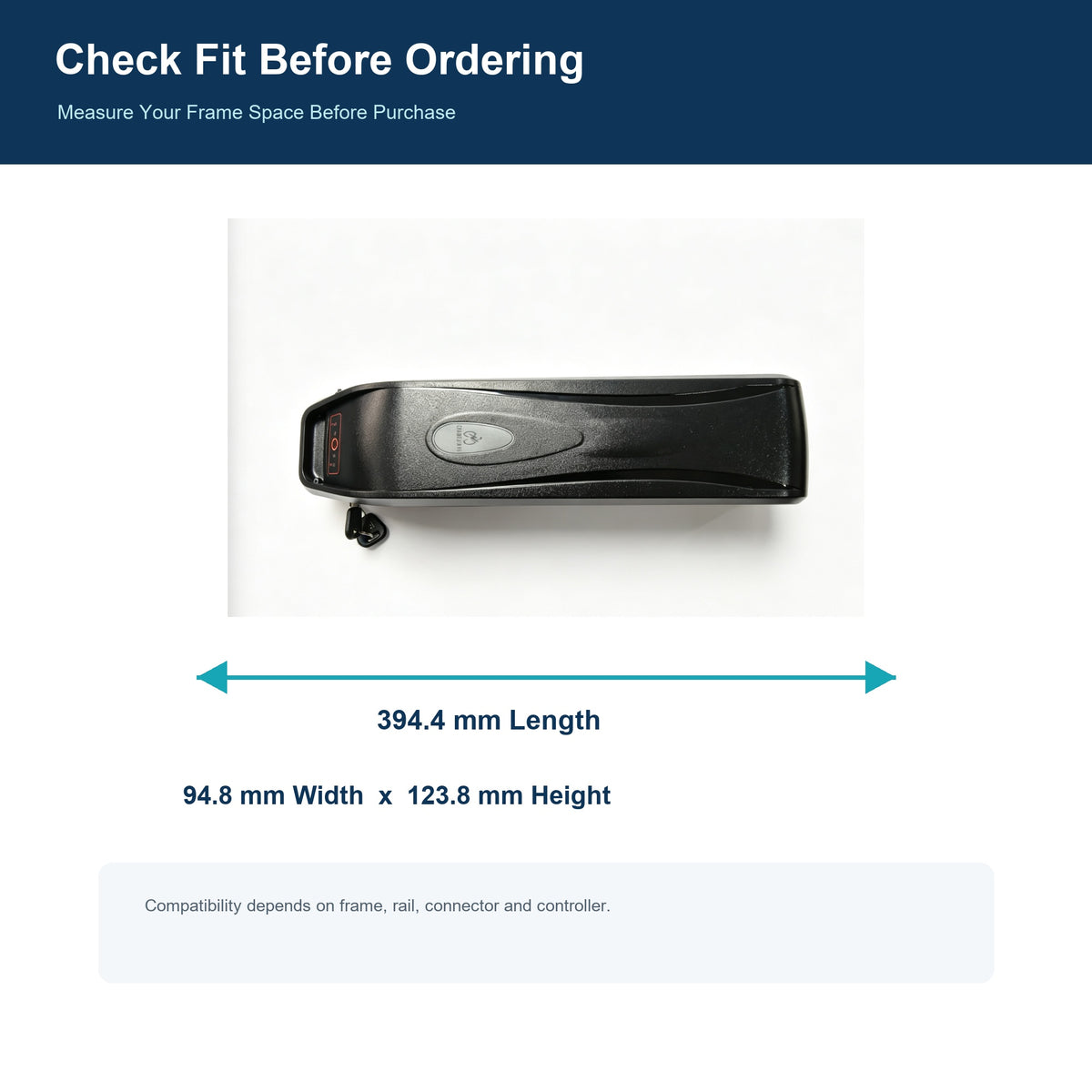

• Battery dimensions: approximately 14.41 × 3.78 × 4.59 in (366 × 96 × 117 mm)

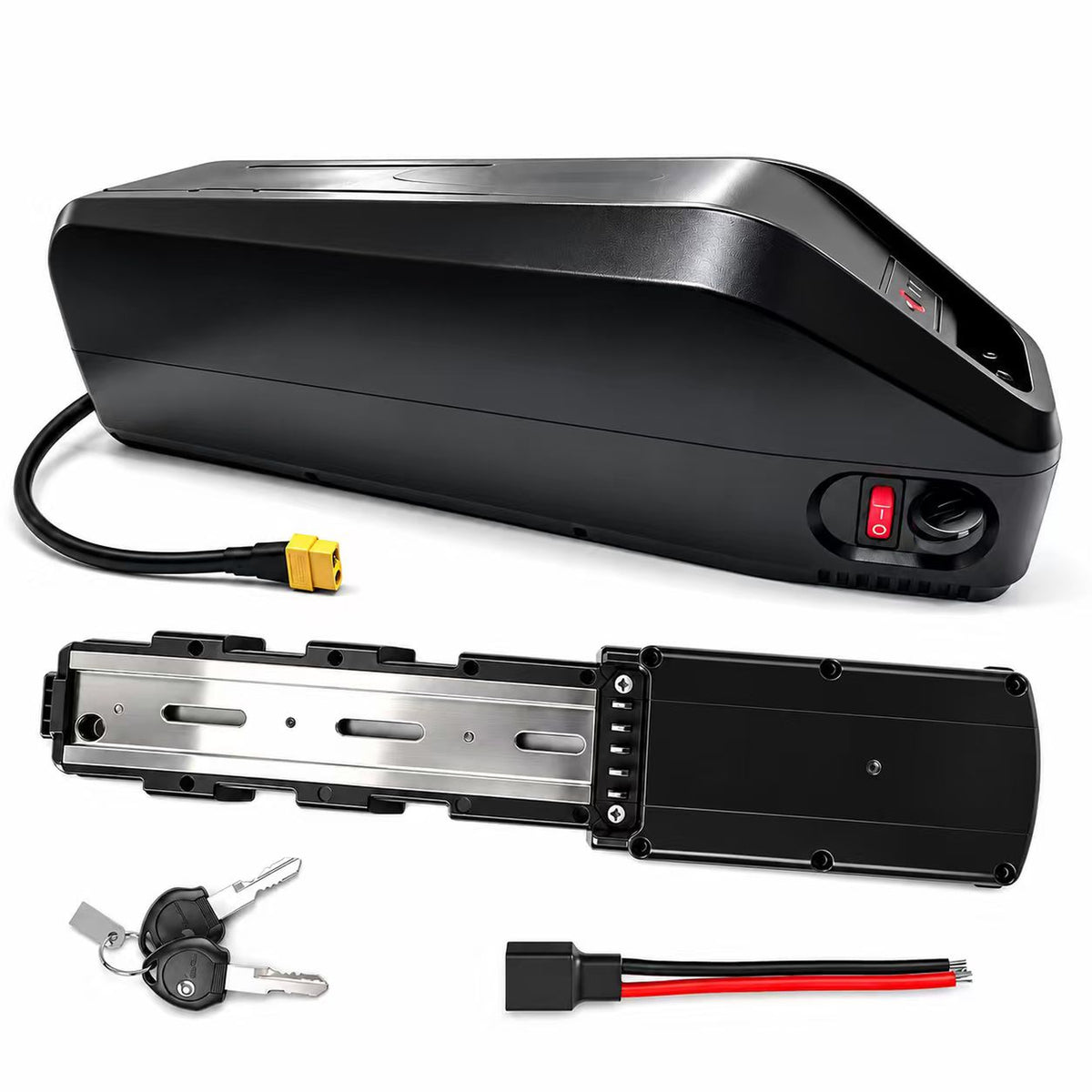

Included

• 48V 15Ah battery

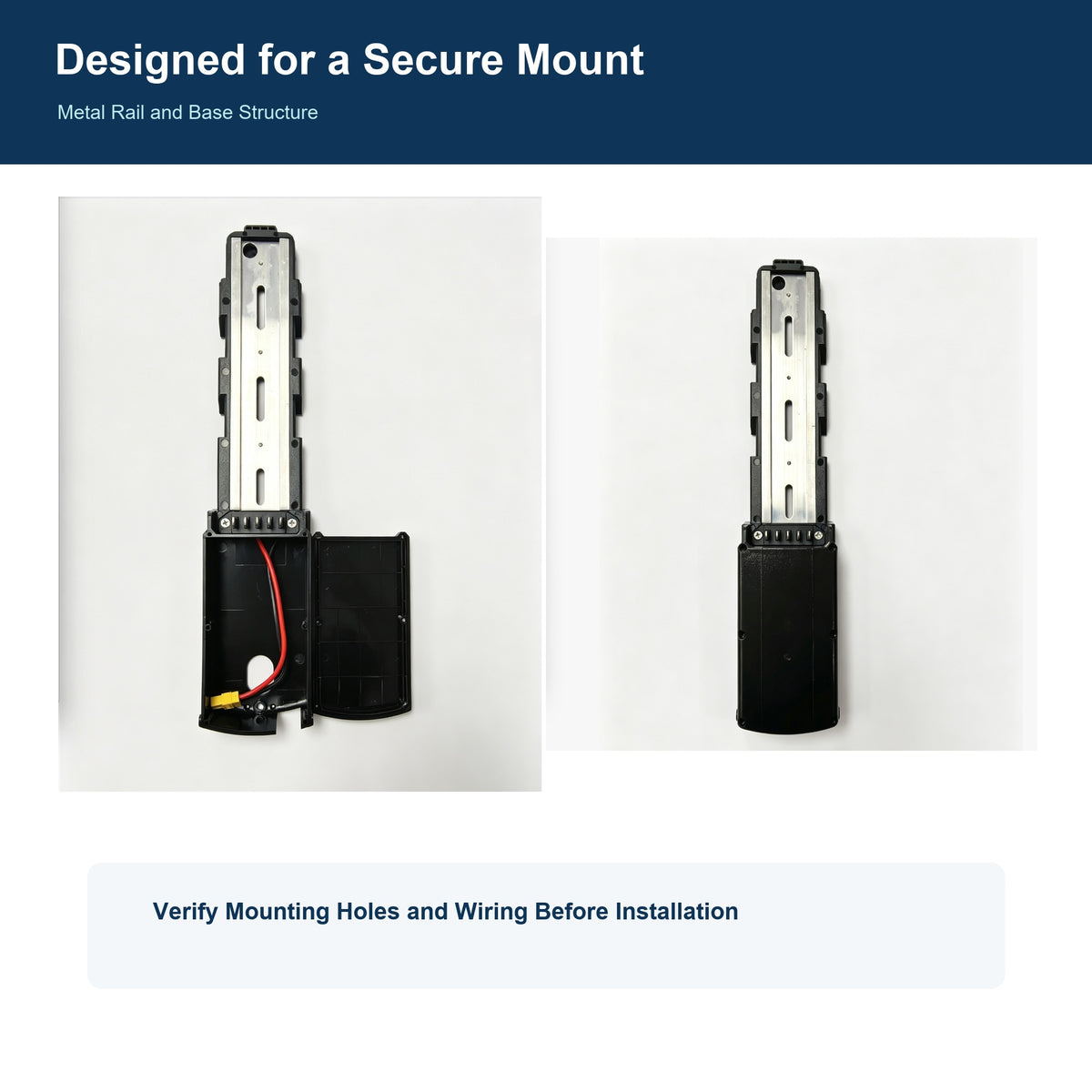

• Slide-in mounting base

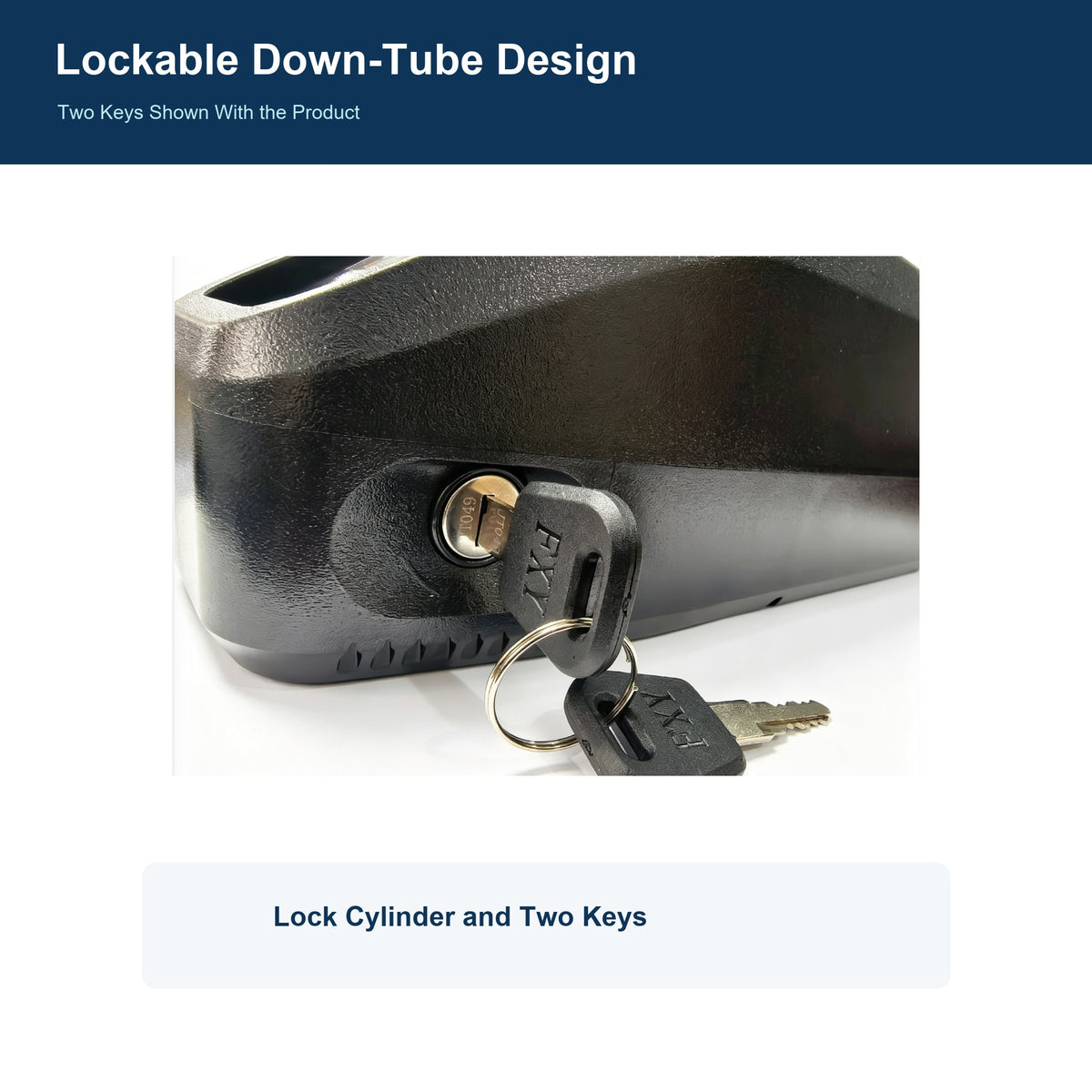

• Two keys
• XT60 adapter cable
• Charger not included

Check compatibility before ordering

This is not a universal drop-in replacement. Before purchasing, verify all of the following:

• Your e-bike/controller uses a 48V battery system.
• Controller rated current does not exceed the battery's 25A continuous-discharge rating.
• The frame has enough clearance for the battery and for sliding it on and off the base.

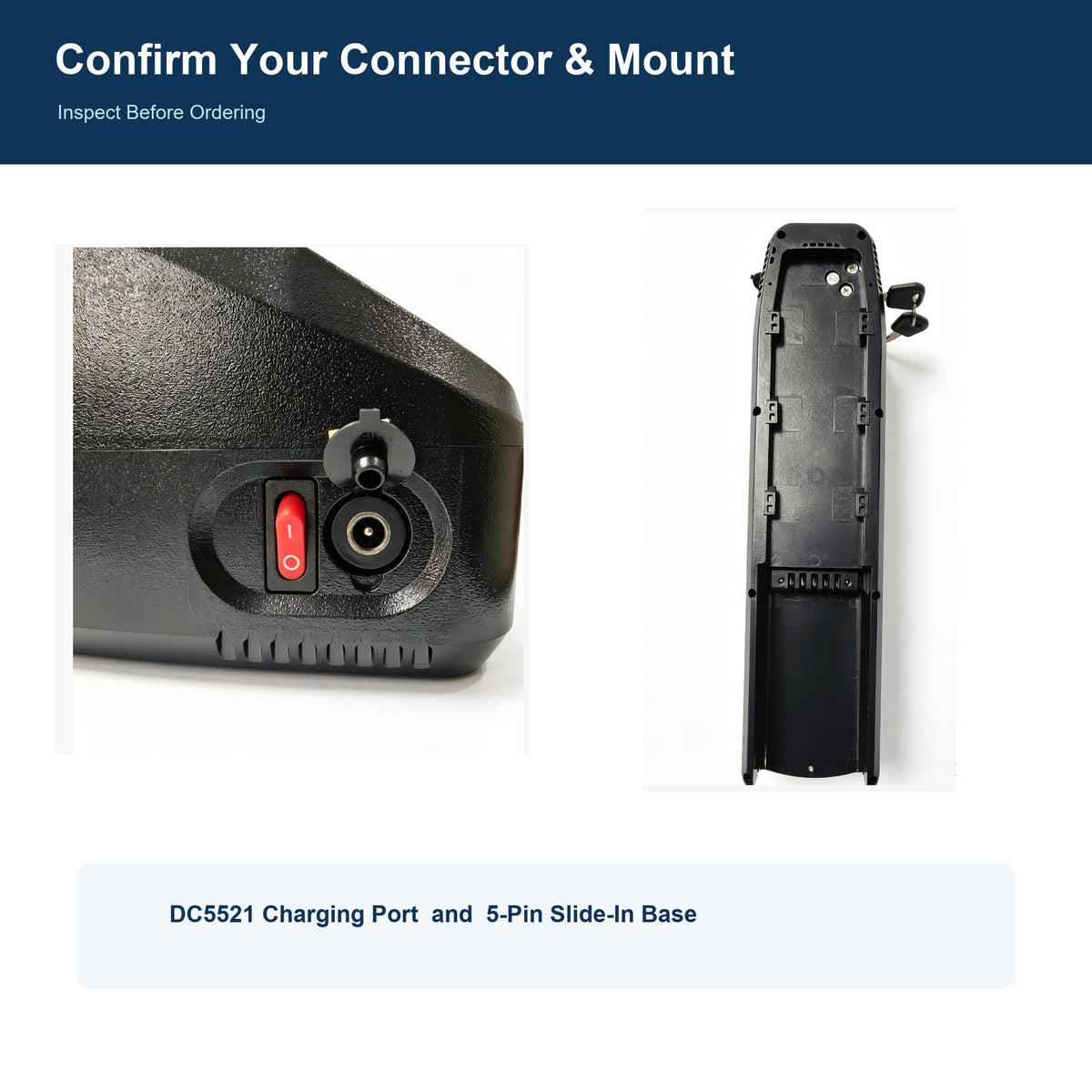

• The mounting-hole positions, DC5521 charging port, 5-pin base connection and XT60 wiring are compatible.
• Red and black wire polarity is verified by a qualified installer before connection.

Installation note: Professional installation is recommended. Do not short-circuit, puncture, crush, modify or expose the battery to water, fire or extreme heat. Use only a compatible 54.6V lithium-ion charger.

Shipping & Package Information

• Ships from: U.S. warehouse
• Delivery area: Eligible addresses in the contiguous United States only
• Estimated delivery: 5–7 days
• Package dimensions: 400 × 120 × 160 mm (15.75 × 4.72 × 6.30 in)
• Shipping weight: 4.56 kg (10.05 lb) per battery set

We do not ship this lithium battery to Alaska, Hawaii, Puerto Rico, other U.S. territories, PO Boxes, APO/FPO/DPO addresses, or destinations restricted by the carrier. Orders ship using a carrier and service authorized to transport lithium batteries. Additional destination restrictions may apply.

Warranty

This battery includes a 1-year limited warranty against eligible manufacturing defects. For approved warranty claims made during the first 6 months, Dakeya covers the applicable authorized shipping cost. For approved claims made after 6 months and within the 1-year warranty period, the customer is responsible for applicable return and/or replacement-part shipping costs.

The warranty does not cover normal capacity loss, incorrect polarity or wiring, use of an incompatible charger, water ingress, impact damage, misuse, unauthorized modification, disassembly, or improper installation.

Charger: A compatible 54.6V lithium-ion charger is required and is not included.

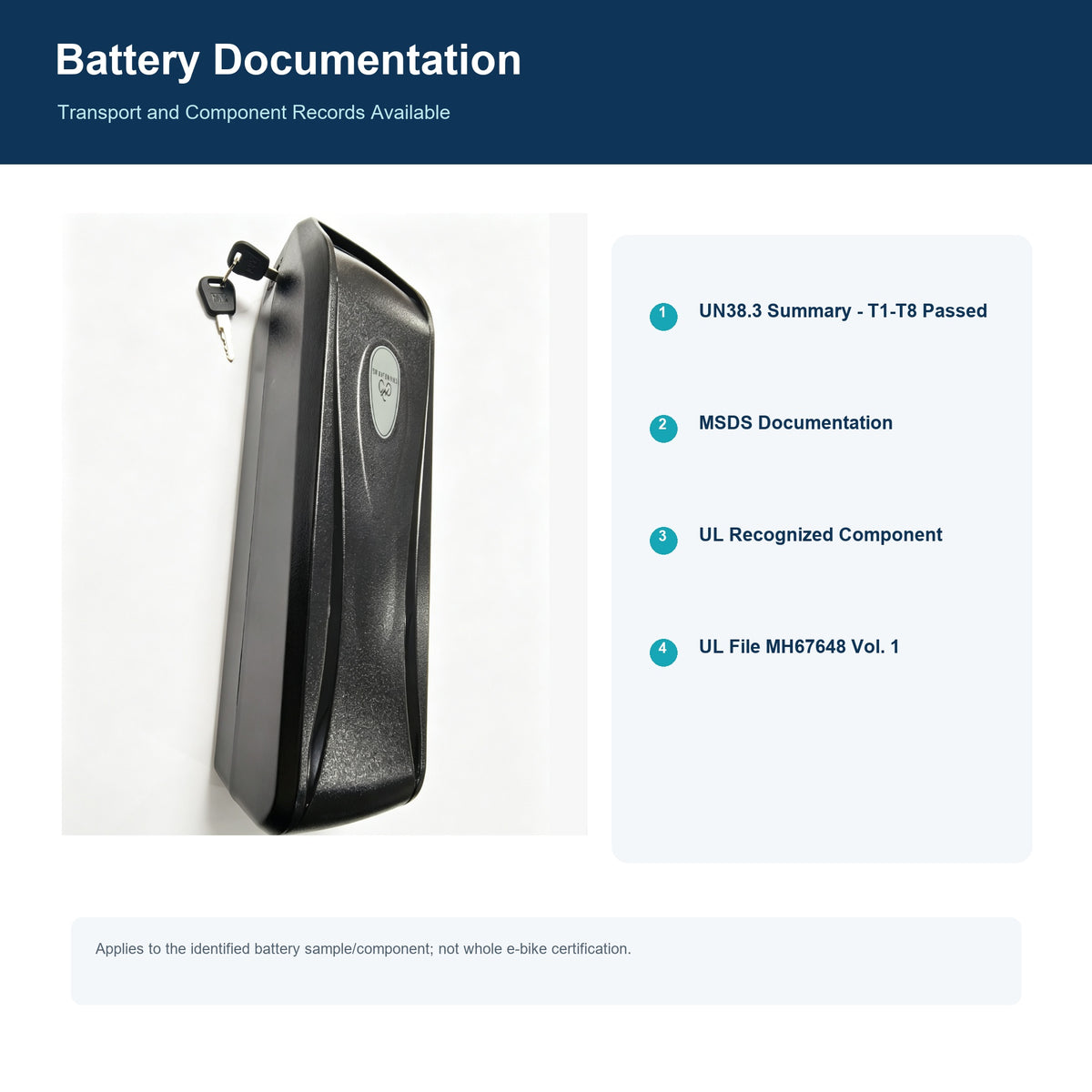

Battery Safety & Compliance Summary

• UN38.3: Transport test documentation is available for battery model VLP 21700-13S3P.
• SDS/MSDS: Safety Data Sheet documentation is available for the 48V 15Ah, 720Wh battery.
• UL documentation: UL Recognized Component documentation is available for model verification.

Important: This product is not represented as UL Listed or UL 2849 certified. UN38.3 documentation relates to lithium-battery transport testing and is not a consumer product quality certification.

Original supporting documents are available upon reasonable request for platform review, shipping compliance, or product verification. Please contact info@dakeyabike.com and include the battery model VLP 21700-13S3P.
